Start switch guard CF-Moto 450mt

Custom-engineered switch protection solution developed using 3D scanning and reverse engineering.

DOWNLOAD FILE

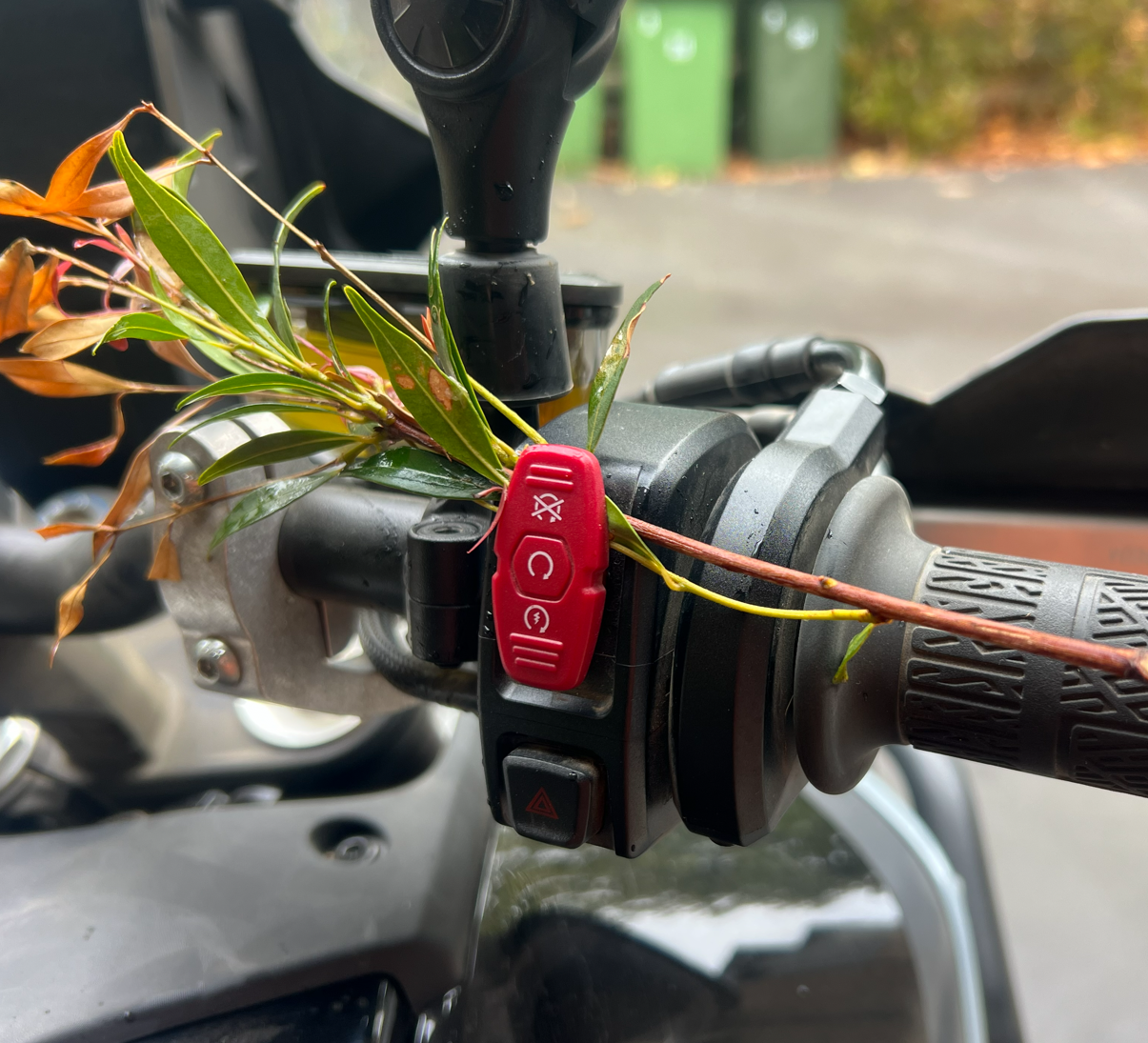

Motorcycle switch guard preventing branches from interfering with the start switch during riding

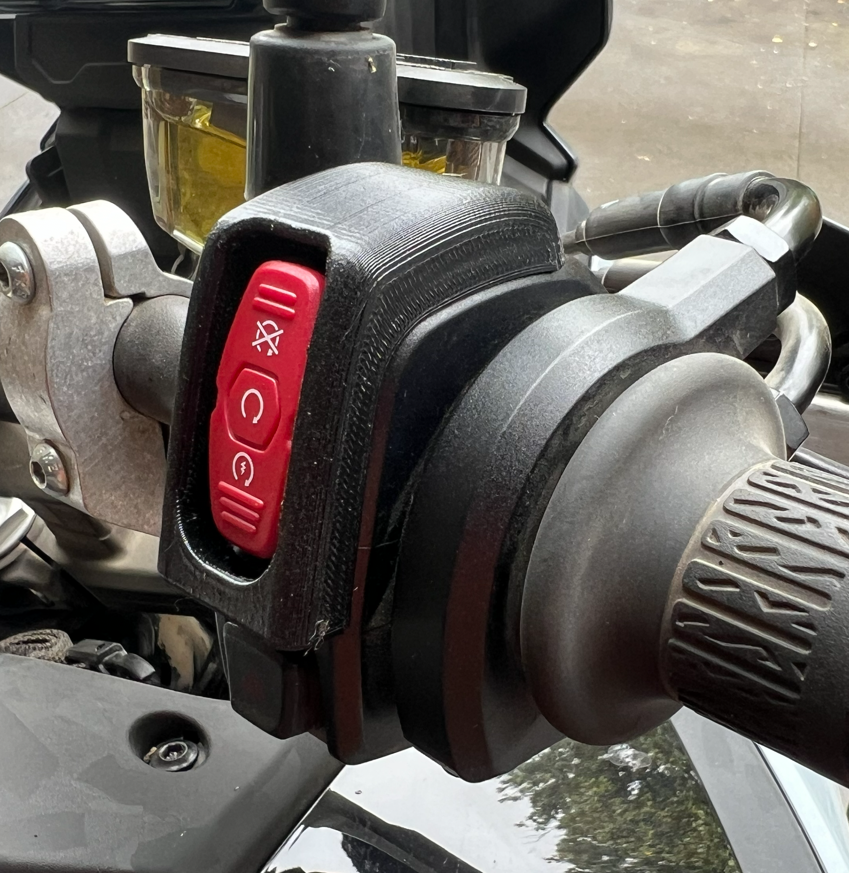

Custom switch guard installed on CF-MOTO 450MT protecting the start button

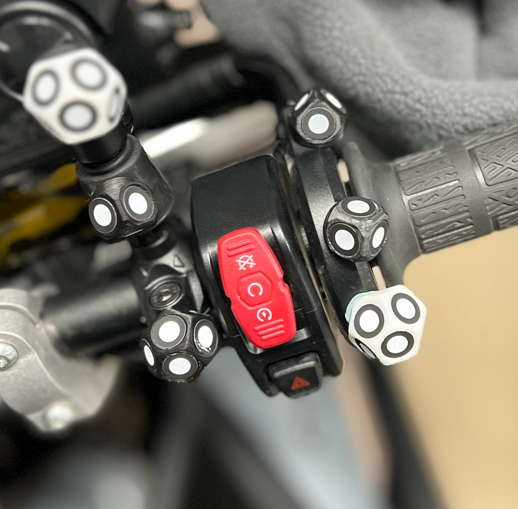

Motorcycle handlebar prepared for 3D scanning with positioning targets applied for accurate data capture

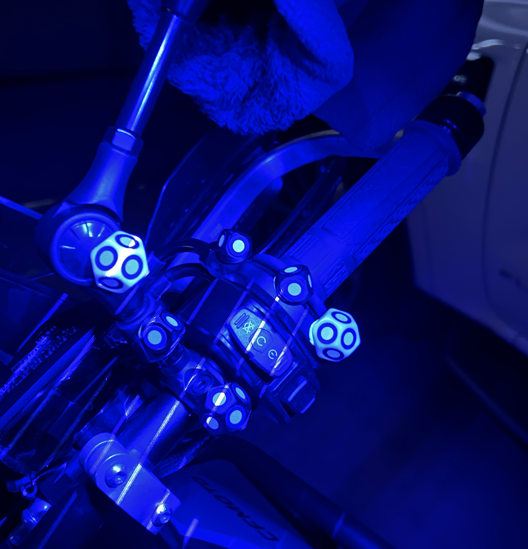

3D scan data of motorcycle handlebar and switch assembly used for reverse engineering

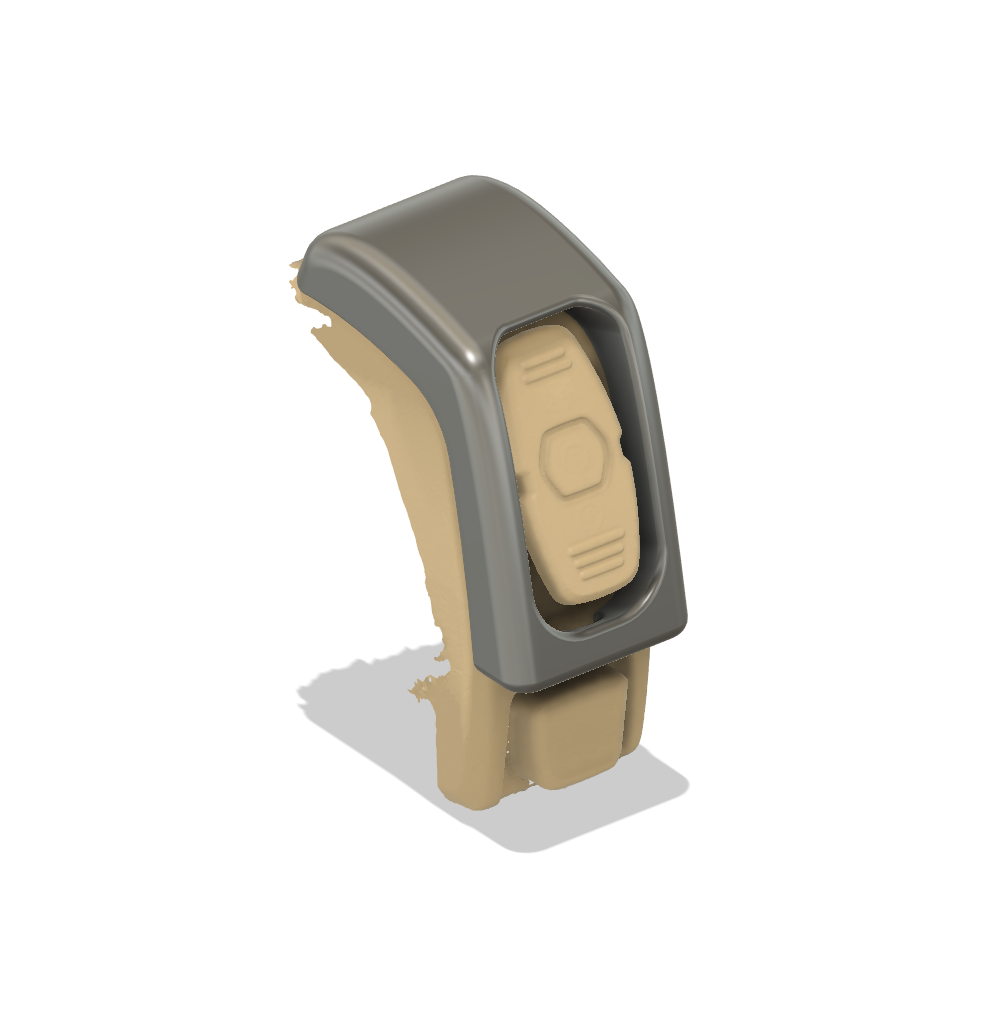

CAD model of custom motorcycle switch guard developed from 3D scan data

  • Personal use only, not for commercial

Overview

This project focused on solving a known usability and durability issue with the CF-MOTO 450MT motorcycle start switch.

The original switch design is exposed and susceptible to interference from branches, debris, or external contact during off-road riding. This can lead to accidental activation or, in some cases, damage or breakage of the switch.

Using high-accuracy 3D scanning and reverse engineering techniques, a custom switch guard component was designed to protect the start button while maintaining full usability and ergonomics.

The final result is a compact, functional, and production-ready component suitable for additive manufacturing.

Challenge

The main challenge was designing a protective solution that integrates seamlessly with the existing motorcycle geometry without interfering with operation.

Key challenges included:

  • Capturing accurate geometry of the handlebar control assembly

  • Designing within tight spatial constraints

  • Ensuring full accessibility of the start switch

  • Preventing unintended contact from external objects (branches, debris)

  • Maintaining ergonomic usability for the rider

  • Creating a design suitable for 3D printing and real-world durability

solution

A purpose-built switch guard component was developed to:

  • Shield the start button from accidental contact

  • Prevent branches or objects from getting trapped in the switch

  • Maintain full accessibility and rider control

  • Integrate cleanly with the existing handlebar design

  • Be easily manufactured using 3D printing

The design balances protection with usability, ensuring the rider experience remains intuitive and unaffected.

Result

  • Improved durability and protection of the start switch

  • Reduced risk of accidental activation or damage

  • Clean, integrated design matching the motorcycle aesthetics

  • Production-ready CAD model suitable for additive manufacturing

  • Fully functional prototype validated on the physical vehicle

Technologies Used
